Specifications & Customization
Carbon Fiber Series
| Model | Extended Length | Folded Length | Weight | Tube Specs | Maximum compressive load / Max Load | Fatigue Test |
|---|---|---|---|---|---|---|

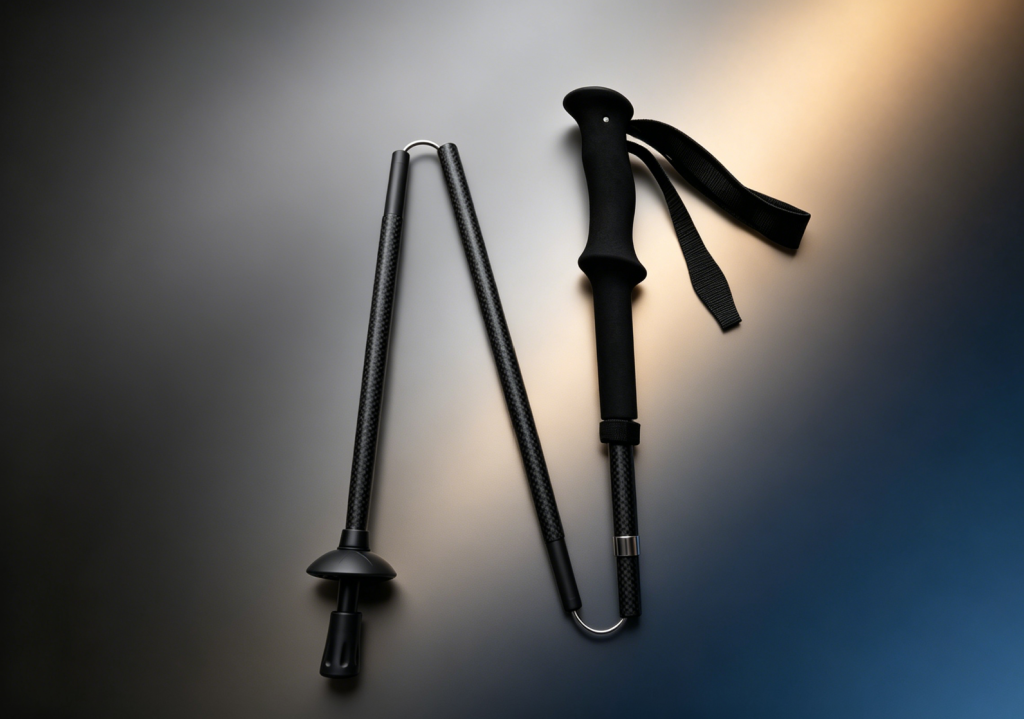

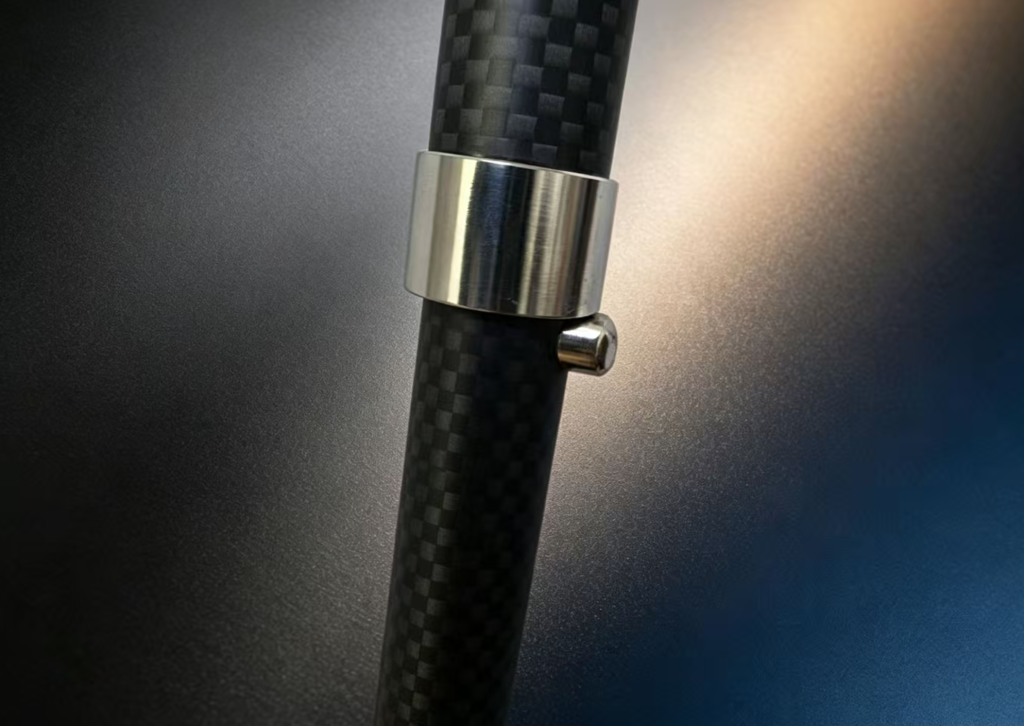

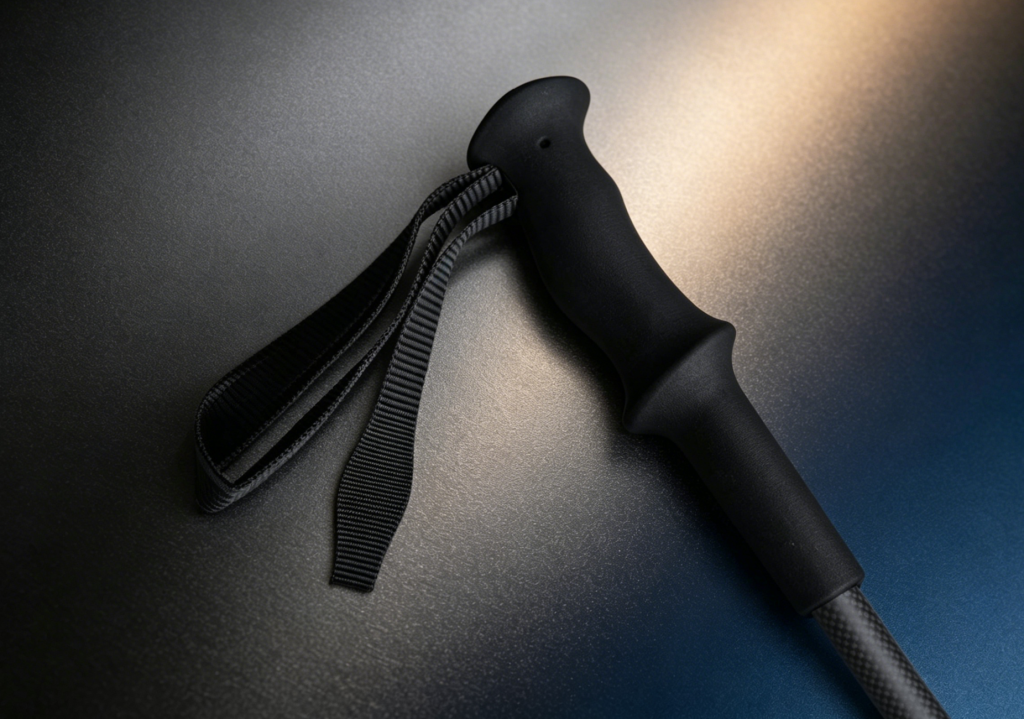

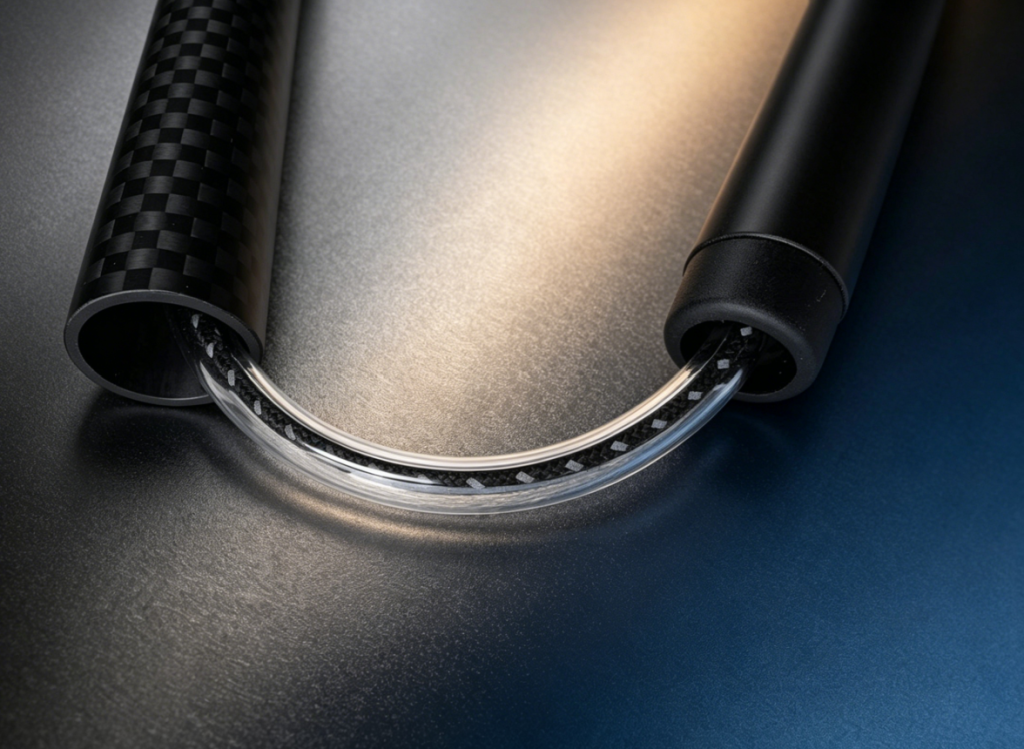

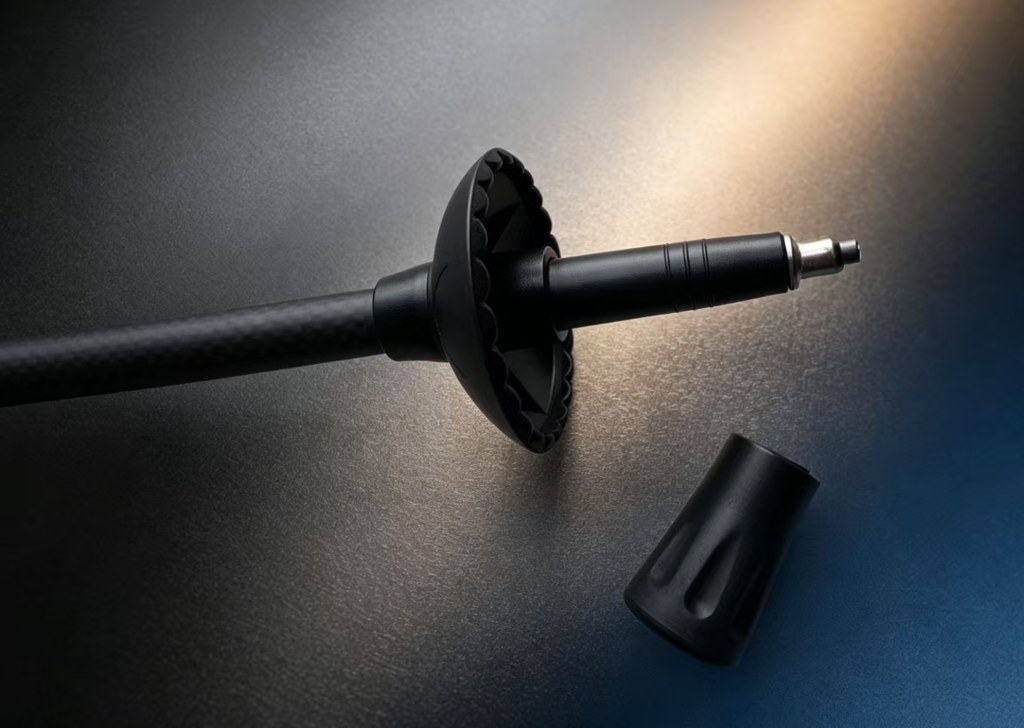

| Full Carbon 3K Matte Fixed | 110 cm | 36 cm | 168g | 16×1.05 / 14×1.05 / 14×1.05 / 14×1.05mm | 577.8N (No break) | — |
| Carbon T300 4-Section Folding | 125 cm | 36.5 cm | 160g | 14×0.8 / 12×1.0 / 12×1.0 / 12×1.0mm | 288N | 100,000 cycles |
| Carbon T800 4-Section Folding | 125 cm | 36.5 cm | 162g | 14×0.8 / 12×1.0 / 12×1.0 / 12×1.0mm | 315N | 100,000 cycles |
| Carbon T800 5-Section Folding | 115 cm | ≤35 cm | <210g | 16×1.0 / 14×1.0 / 12×1.0 / 12×1.0 / 12×1.0mm | — | — |
Aluminum Series
| Model | Extended Length | Folded Length | Weight | Tube Specs | Static Load | Fatigue Test | Locking Mechanism |
|---|---|---|---|---|---|---|---|

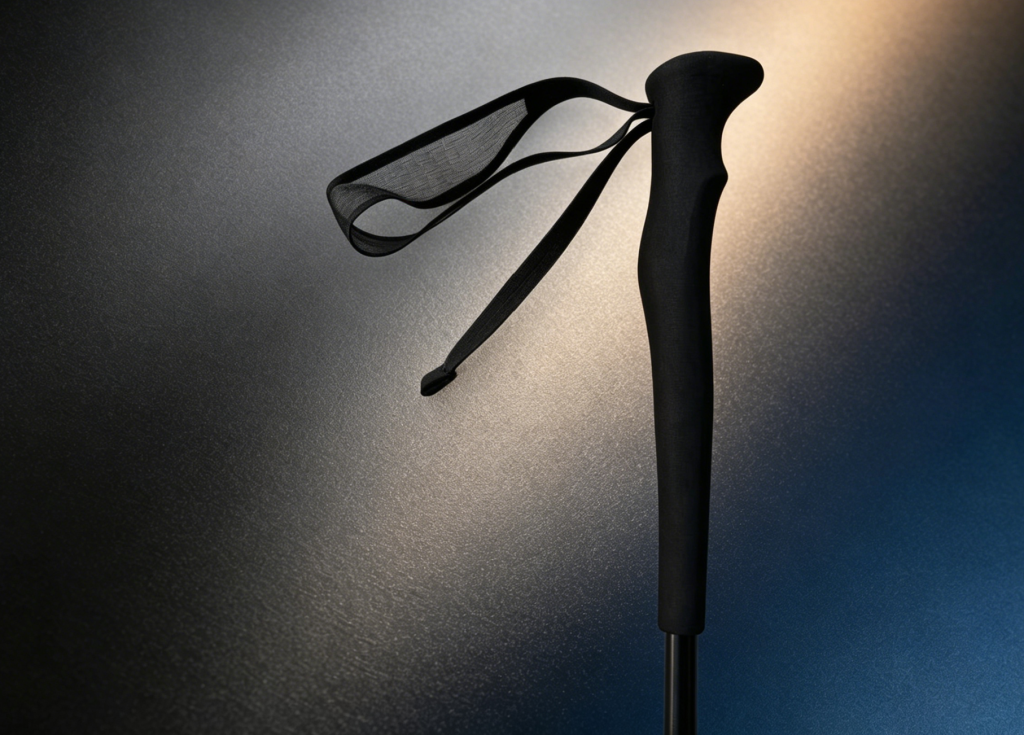

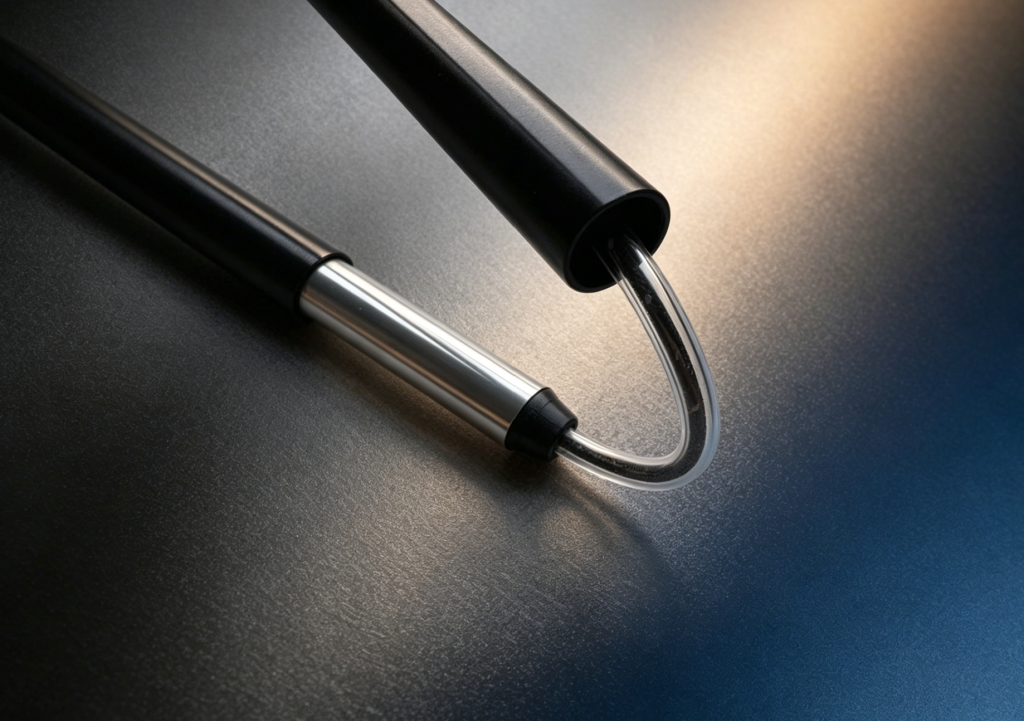

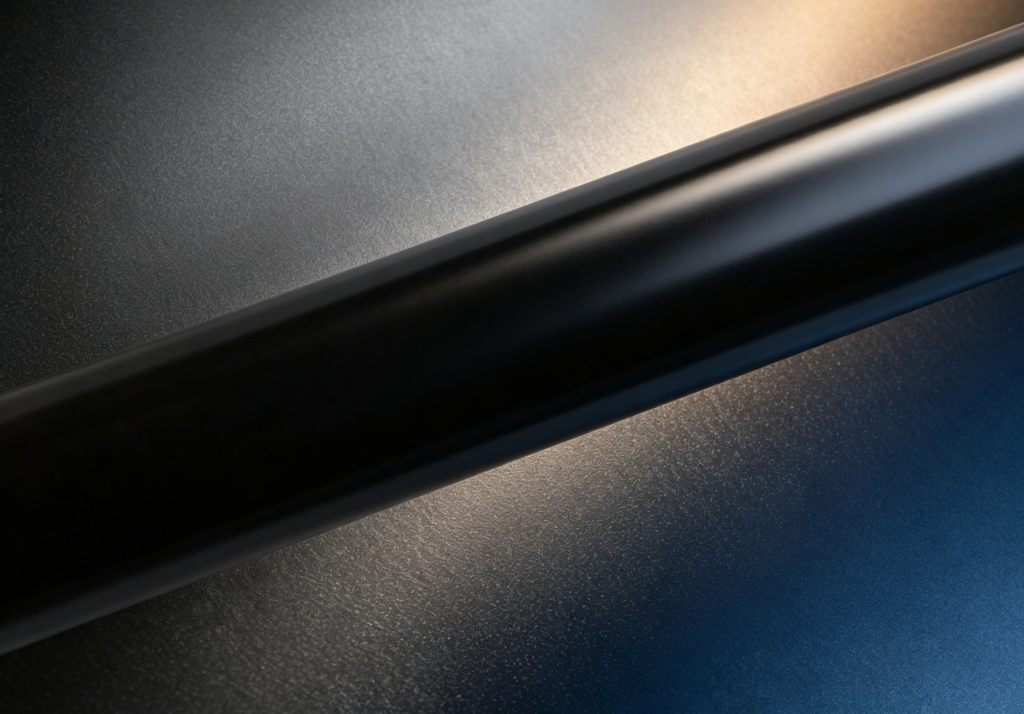

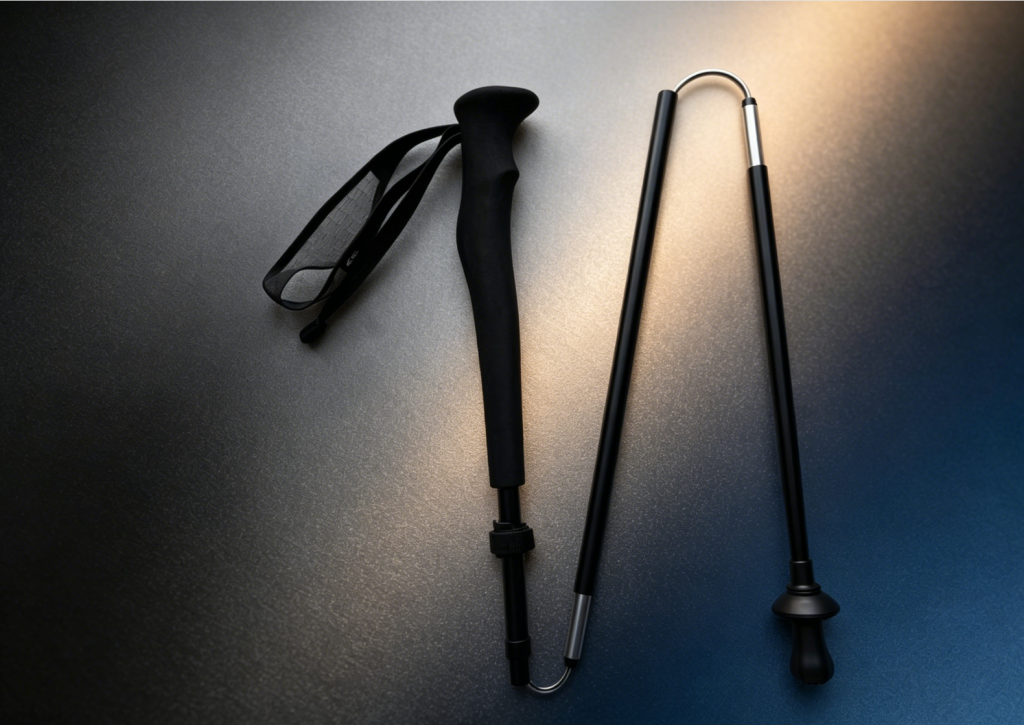

| Aluminum 7075 4-Section Folding | 125 cm | 36 cm | 211g | 14×0.8 / 12×1.0 / 12×1.0 / 12×1.0mm | 262N | 100,000 cycles | Push-button Folding |

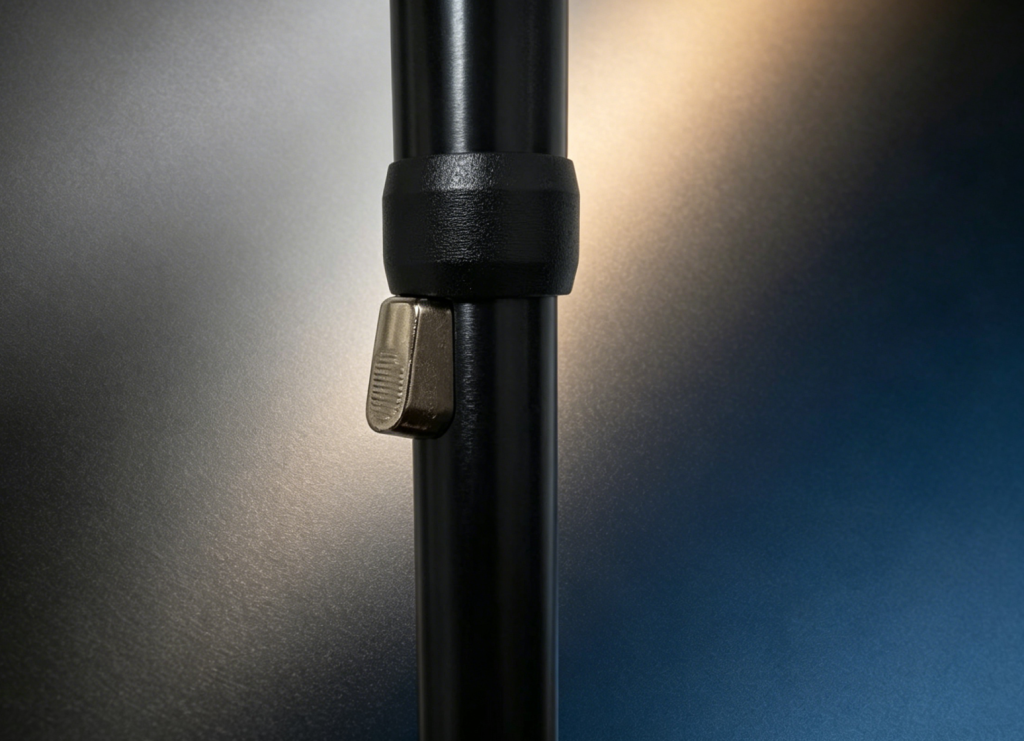

| Aluminum 7075 5-Section Adjustable | 110–130 cm (adjustable) | ≤35 cm | <260g | 16×1.0 / 14×1.0 / 12×1.0 / 12×1.0 / 12×1.0mm | — | — | 2nd section: External Lever Lock |
Customization Capabilities
| Category | Parameter | Options Available |
|---|---|---|
| Material | Shaft Material | Carbon Fiber (3K, T300, T800) / Aluminum (6061, 7075) |
| Grip Material | EVA Foam / Cork | |
| Dimensions | Extended Length | 105–135 cm (customizable) |
| Folded Length | 34–40 cm (depends on sections and design) | |
| Tube Diameter × Wall Thickness | Custom specifications available | |
| Structure | Sections | 3 / 4 / 5 sections |
| Locking Mechanism | External Lever Lock / Push-button Folding | |
| Grip Shape | Grip Shape | Straight / Ergonomic (Curved) / Extended EVA Grip |
| Wrist Strap | Material | Nylon / Polyester / Padded (adjustable length) |

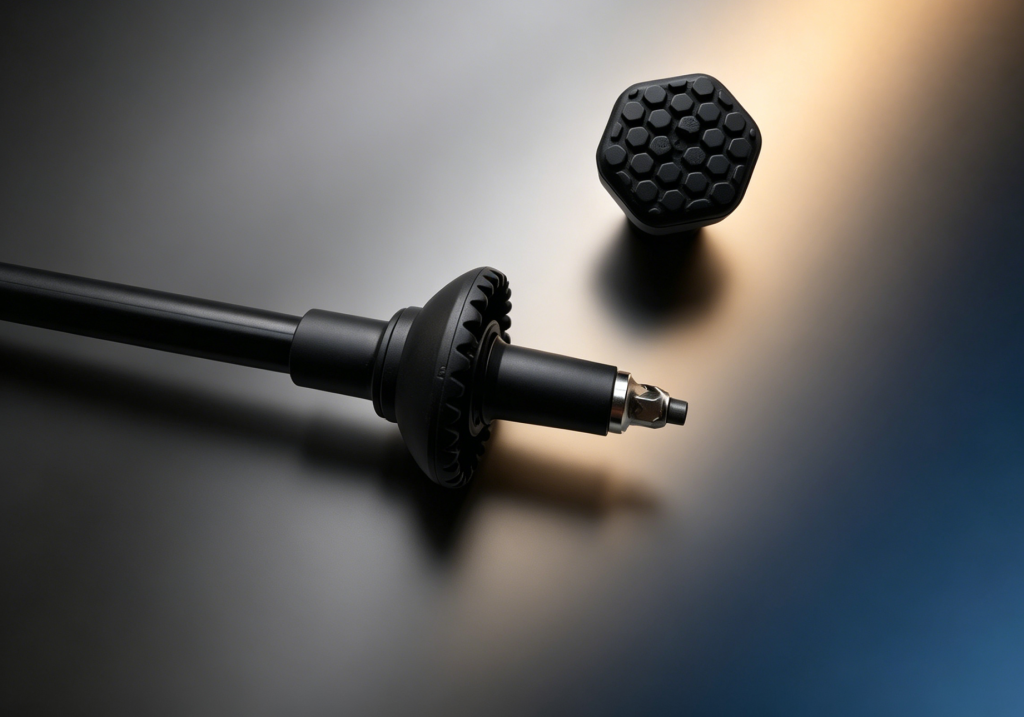

| Tip & Basket | Basket Size | Standard (hiking) / Wide (snow) |
| Tip Material | Tungsten Carbide | |
| Surface Finish | Shaft Finish | Matte / Glossy / Anodized (Aluminum) |
| Branding | Logo Application | Silk Screen... |
| Shaft Printing | Custom graphics, patterns, or text | |
| Color | Color Matching | Pantone matching (MOQ: 500 pcs/color) |
| Accessories | Bundled Accessories | Rubber tips / Mud baskets / Snow baskets / Carry bags |
